Low high frequency series air plasma cutter is newly designed equipment for metal processing.
The series of cutters are able to cut all the metal materials and are especially suitable for high alloy steels and non-ferrous metals, which cannot be cut with flame cutting.
The series of cutters have the perfect external static characteristics and well dynamic characteristics, and performs a function of high-frequency arc starting.
The features are as follows:
Highly centralized arc energy, good stability, strong cutting force.
High speed in cutting (3 times to 5 times faster than gas cutting)
Low cutting cost.
Narrow, smooth and neat incision, which is almost vertical.
Little deformation of work piece.
Continuously adjustable cutting current.
High air pressure to be with arc starting.
No high frequency to give influence around power net.
Easy operation.
LCD control panel
2T/4T torch operation
Gas flow time control and display
Light in weight, small volume, easy to be moved.
Besides, the economic efficiency has also been considered sufficiently when it is first designed.
The electricity utility rate reaches 90% and the power factor is 0.89.
Max. Cut thickness: manual cut
50A: 12mm

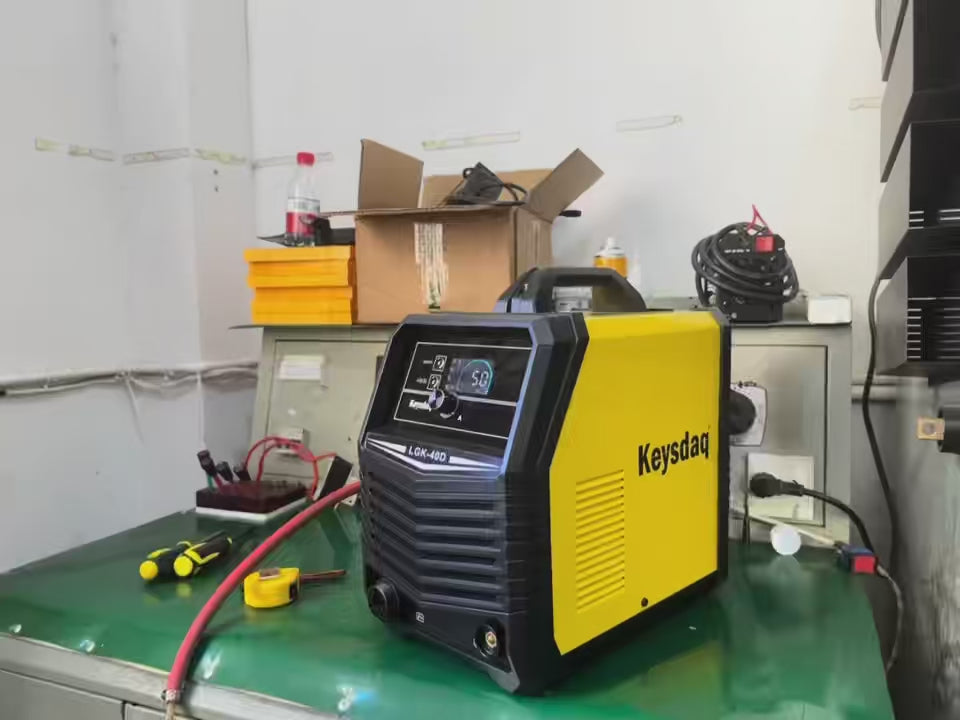

Model: 50A HF portable air plasma cutting machine
Power supply: 1-220V+/-15%
Duty cycle: 40%
Max. Working current: 50A
Protection: IP21S
