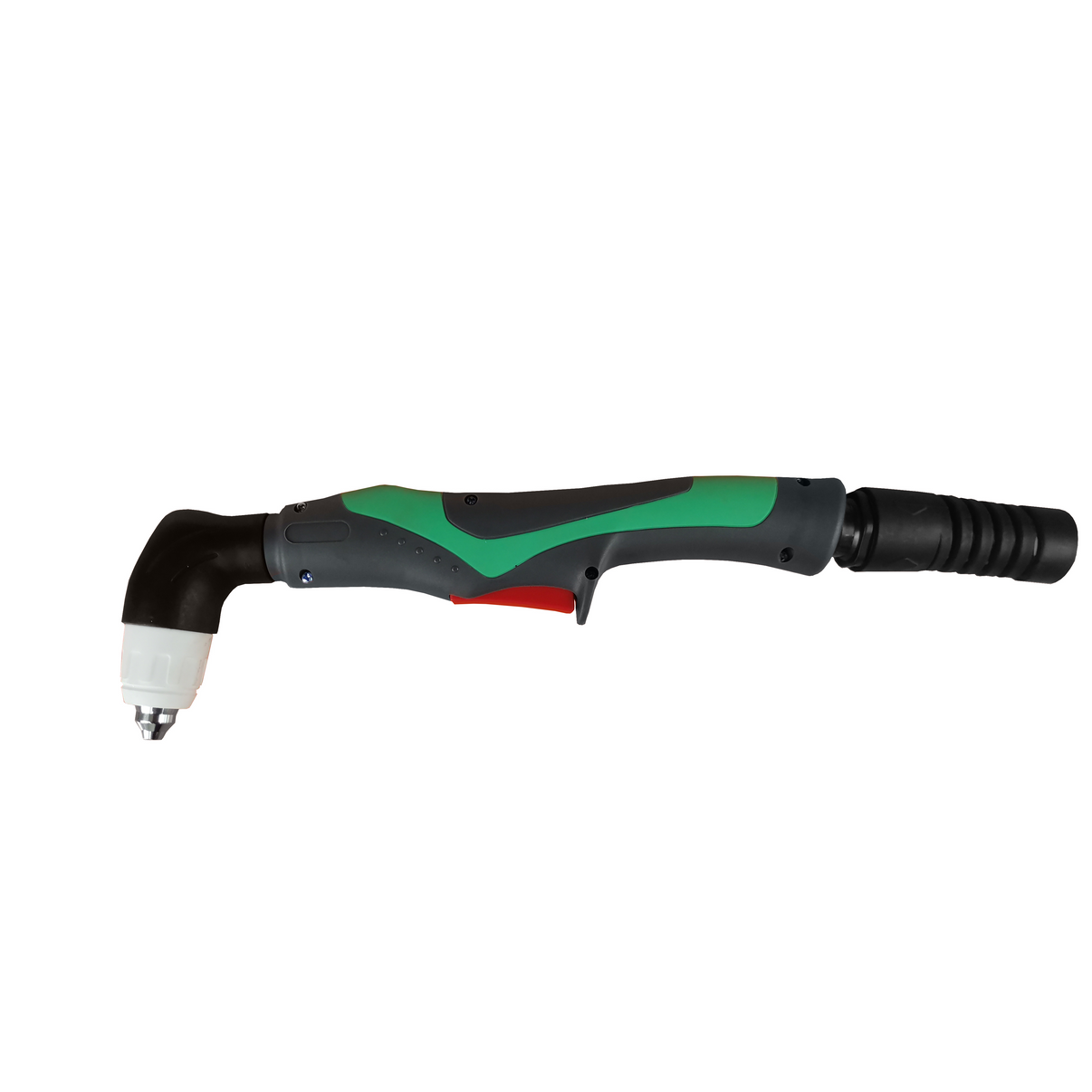

PLASMA CUT TORCH P80 LL20256M

Keysdaq torch use high quality tellurium copper, reliable hafnium and high temperature resistance nylon plastic part.
The torch head, the electrode and tips are the most popular model in worldwide.


TECHNOLOGY DATA

Rated working current:  80 amps
Duty cycle:  60%
Gas type:  air
Gas pressure: 4.0 – 6.5 MPA
Gas flow:  160LPM
Arc start:  HF pilot arc
Gas post flow time: 80 sec.
Torch cable length: customized
Torch connection plug:  separated model adaptor / central adaptor
Torch cable cover material: rubber/canvas/fireproofing fabric

Consumables:
Ceramic shield
Nozzle: 1.3 / 1.5 / 1.7 mm
Electrode
